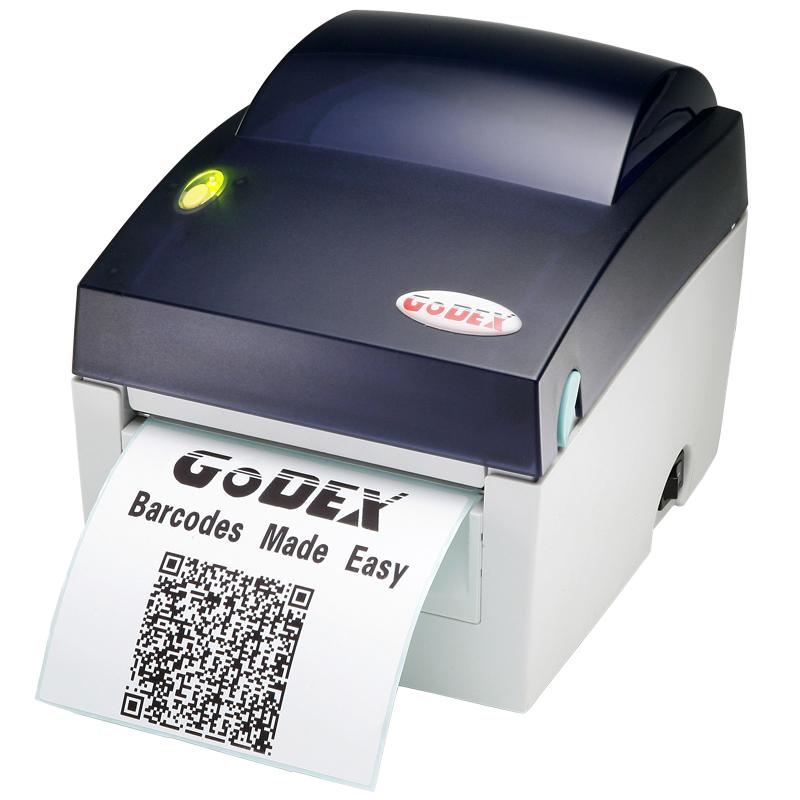

EZ-DT4 熱感型條碼機 203dpi
4" width direct thermal label printer
Simple and economical 4.25” direct thermal printer
Small space-saving design with wall mounted feature
Standard USB 2.0 and DB9 serial port connections
Seagull Scientific Windows drivers included
Free QLabel software with database function makes it easy to design and print labels
Free USB cable and sample media included with every printer
Options include: label dispenser, cutter, and Ethernet card
| Print Method | Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 4 IPS (102 mm/s) |
| Print Width | 4.25” (108 mm) |
| Print Length | Min. 0.16” (4 mm)**; Max. 68” (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | 4MB Flash (2MB for user storage) / 8MB SDRAM |
| Sensor Type | Fixed, center aligned see-through sensor, adjustable reflective sensor |
| Media | Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.003” (0.06 mm) Min. - 0.008” (0.20 mm) Max. Label roll diameter: Max. 5” (127 mm) Core diameter: 1” (25.4 mm), 1.5” (38.1 mm) |
| Printer Language | EZPL, GEPL, GZPL |
| Software | Label design software: QLabel-IV (for EZPL only) Driver: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008 DLL: Windows 2000, XP and Vista |
| Resident Fonts | Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Download Fonts | Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Barcodes | 1-D Bar codes: Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code |
| Code Pages | CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255 Unicode UTF8、UTF16BE、UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces | USB port Serial port: RS-232(DB-9) |
| Control Panel | One Tri-color LED: Power (Green, Orange and Red) Function Key: FEED |
| Real Time Clock | Standard |
| Power | Auto Switching 100-240VAC, 50-60Hz |
| Environment | Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C) |
| Humidity | Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
| Agency Approvals | CE(EMC), FCC Class A, CB, CCC |
| Dimension | Length: 8.58” (218 mm) Height: 6.53" (166 mm) Width: 6.61” (168 mm) |
| Weight | 3.3 lbs (1.5Kg) ,excluding consumables |
| Options | Parallel port (Centronics 36-pin) Ethernet 10/100Mbps print server (default off; disables USB when in use) External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder Cutter Module Label Dispenser |
| Note | * Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability. |
